Tear Down for Google Pixel 2XL

1. Take out the SIM card slot tray holder.

1

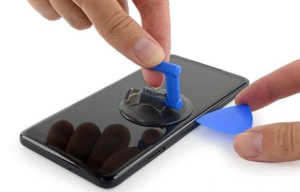

2. Separate the screen with sucker and pry bar (no need to heating).

2

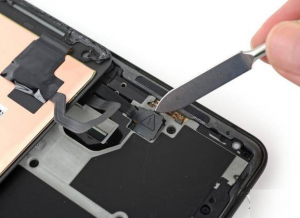

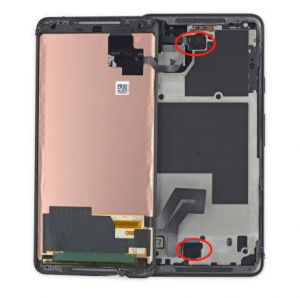

3. Be careful of the cable connected to the mainboard, and don’t pull it apart when you take up the screen.

3-13-2
4. Remove the screws on the motherboard, and take down the middle frame.

4

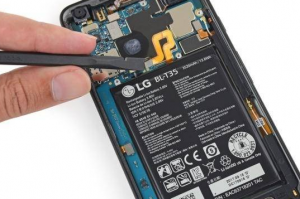

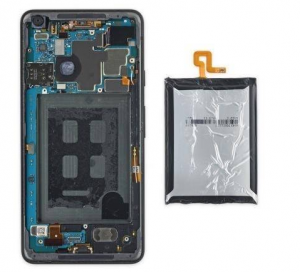

5. Prying the battery connected seat and prize up the battery with pry bar.
5-15-25-3

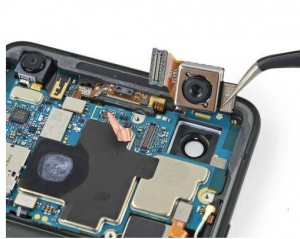

6. Remove the camera.

6-16-2
7. Disconnected the front camera and mainboard, take down screws and slowly take out the mainboard.

7-17-2

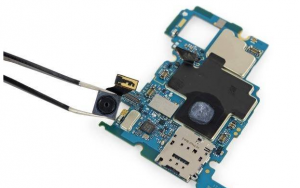

8. Remove the front camera.

8

9. Take off the switch cable.

9
10. Take down the loudspeaker.
10

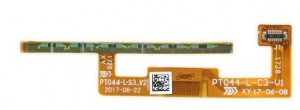

11. Take down the sensor.
11-1 11-2

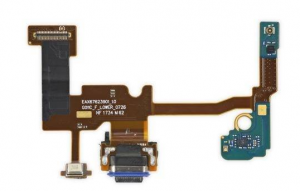

12. Uninstall the screwns on the tail board and take down the tail board.
12-1 12-2

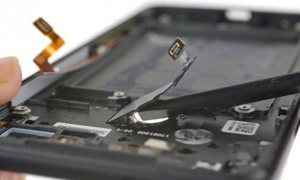

13. Remove the fingerprint button.
13-1

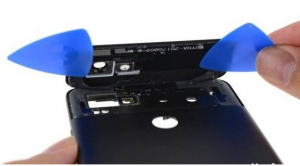

14. Heating it with air gun, then remove it with pry bar.
14

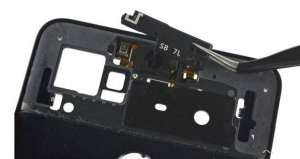

15. Remove the antenna and cable.

15-1 15-2

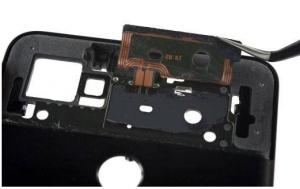

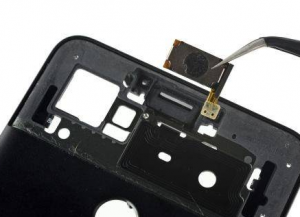

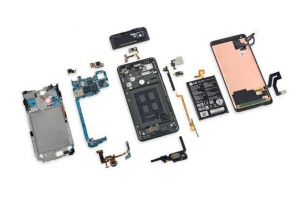

16. Remove the earphones and NFC air wire.

16 16-2 16-3
